Crescent Training Center

HDMI Connectivity:

1.) On the panel to the left of the screen, choose “ON” Under

the display section to turn on the Projector & TVs

ClickShare:

Sometimes this technology can be blocked by Security Policy. Some organizations do now allow flash drives to be connected to your computer. If you receive any access denied messages, HDMI may be the best option.

Using the USB Adapter:

1.) On the Panel, ensure the Display is set to ON

2.) Connect the ClickShare USB / USBC-C Device to your device and wait for it to begin blinking.

3.) It will show up like a flash drive does on your PC. Open the device, and run the file called “ClickShare_For_Windows” (Or the ClickShare_For_MacOSX on Mac)

4.) Once the application has finished running, the USB turns to solid white. Press the large silver button on it once to turn it red. Your screen will now be shared.

You can raise or lower the position on the camera by turning the locking knob counterclockwise, and then turn the handle to adjust the camera height. Turn the lock knob clockwise to lock camera position.

**UNLOCKING THE KNOB WILL RELEASE TENSION, ALLOWING CAMERA TO DROP FREELY**

WiFi Dongle:

Remove the cap and connect to your computer via USB. Your device will automatically detect and prepare the adaptor and connect to the camera.

When selecting the camera on your Teams or Zoom meeting, choose “UVC” as your default camera.

Remote:

The remote will give you precise control on the camera setup, allowing you to adjust the zoom and X,Y positioning.

**Please return the remote and the WiFi adapter to their respective holders located on the tripod.**

Windows Application:

There is also a downloadable app you can run that will allow you to connect to the ClickShare device without the USB adapter.

1.) On your device, go to WIFI networks and connect to the one labeled “Training Center”

2.) Visit the following link, and install the application from the Download Now button:

a. https://www.barco.com/en/clickshare/app

3.) Upon launching the application, it should automatically find the ClickShare labeled “Crescent Training Center”. When first connecting, you will be prompted to enter a PIN on the screen to share.

Mobile Application:

If you would like to use a mobile device (iPhone / Android), you can install the mobile application from the Appstore to share.

1.) Connect to the proper WIFI network labeled “Training Center”

2.) On the Appstore, install the “ClickShare” application,

3.) Upon launching the app, it should discover the unit to share on your screen. Locate the “Crescent Training Center” from the room list. And tap the large button to begin sharing.

Shutting Down the System

1.) Press the “OFF” button listed under the display on the control panel. This will turn off all the TVs and the Projector.

Webcam:

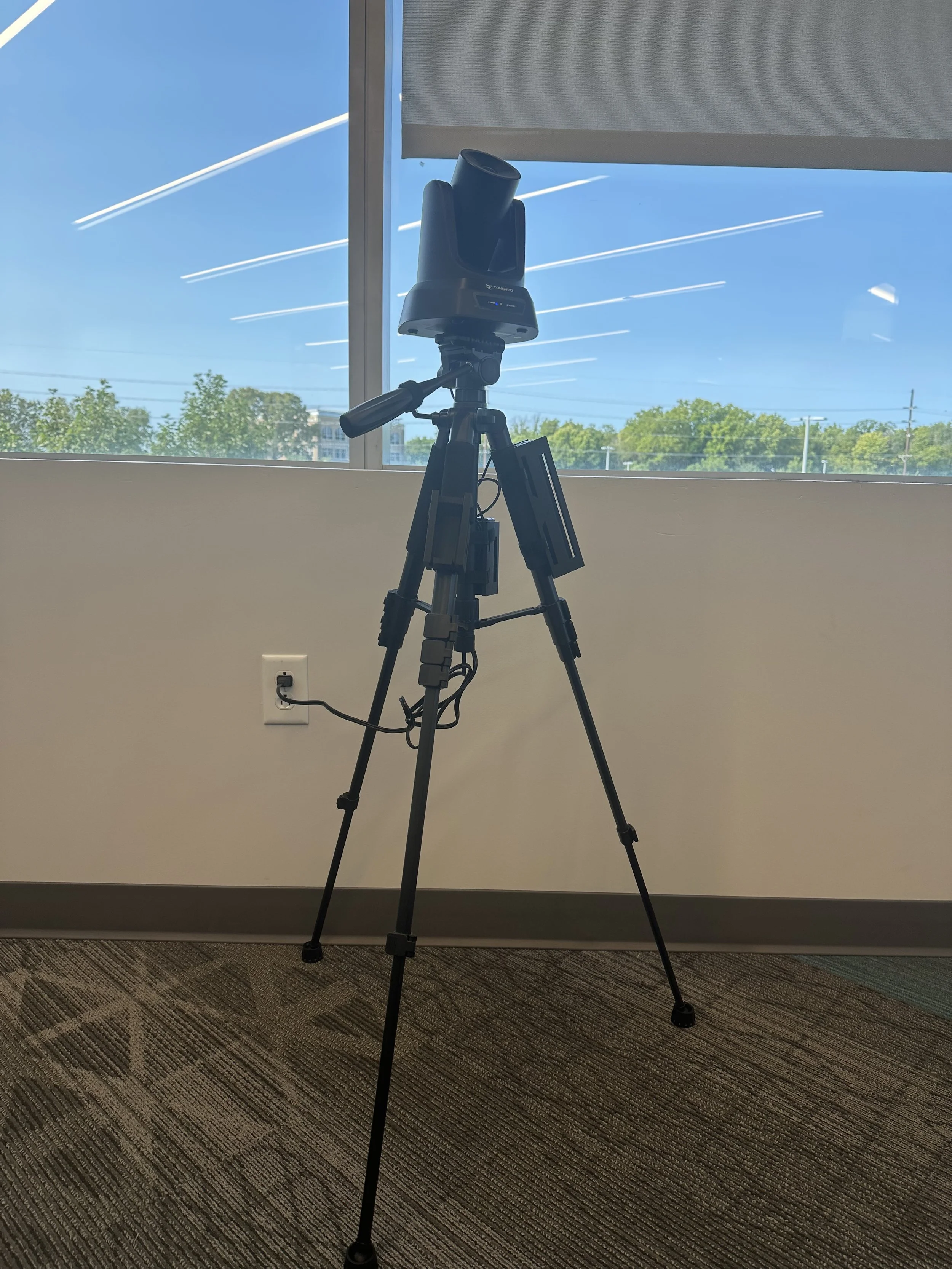

Connect the power cord to the wall and the camera will automatically boot. You can adjust the height of the camera and tripod by either extending the legs (pull one of the latches located on any leg, extend/retract the leg fully. Clasp the latch to secure leg position)

2.) Connect your device to the HDMI Port. This is available through the cabinet below the control panel.
